Single Port POE RJ45 Jack With 10 / 100 / 1000 Base-T Transformer For Router

Single Port POE RJ45 Jack With 10 / 100 / 1000 Base-T Transformer For Router


Specifications

Electrical Requirement:

1. RATING VOLTAGE: 150V AC MAX.
2. RATING CURRENT: 1 AMPHERES MAX.
3. CONTACT RESISTANCE: [30] MILLIOHMS MAX. (INITIAL), [50] MILLIOHMS MAX. (FINAL).
4. DIELECTRIC WITHSTANDING VOLTAGE: NO CREEPING DISCHARGE OR FLASHOVER SHALL OCCU R.
5. CURRENT LEAKAGE: 1MA MAX. [500]VAC FOR 1MINUTE.
6. TEST BETWEEN ADJACENT CIRCUITS OF UNMATED CONNECTOR

MECHNICAL:

1. HOUSING MATERIAL:GLASS FILLED POLYESTER(UL94V-0).
2. CONTACT MATERIAL:PHOSPHOR BRONZE T=0.46MM (C5 100).
3. PLATING:GLOD PLATING OVER NICKEL.
4. DURRABILITY:750 CYCLES MIN.
5. PCB RETENTION PRE-SOLDER:1 LB MIN.
6. PCB RETENTION POST-SOLDER:10 LB MIN.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)
MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

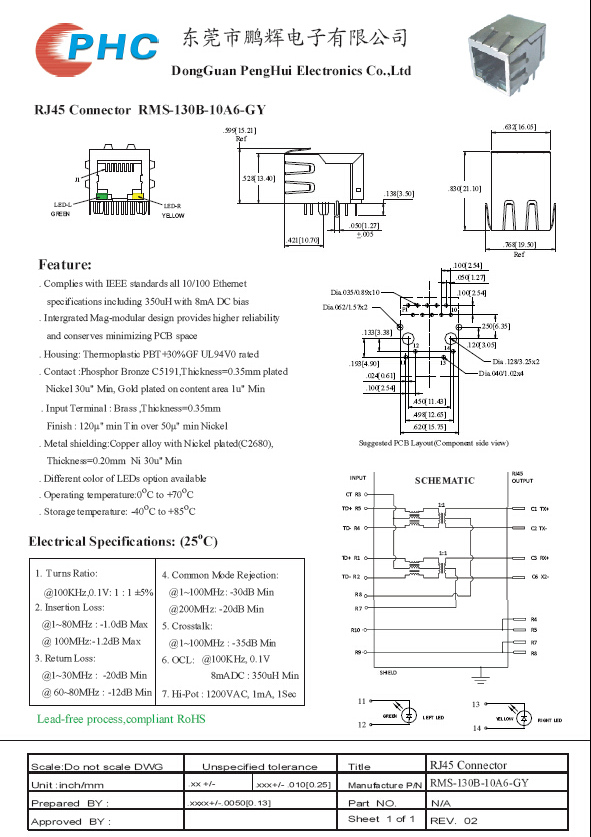

Drawing
